Cable Truss System
Compliant with North American Standards

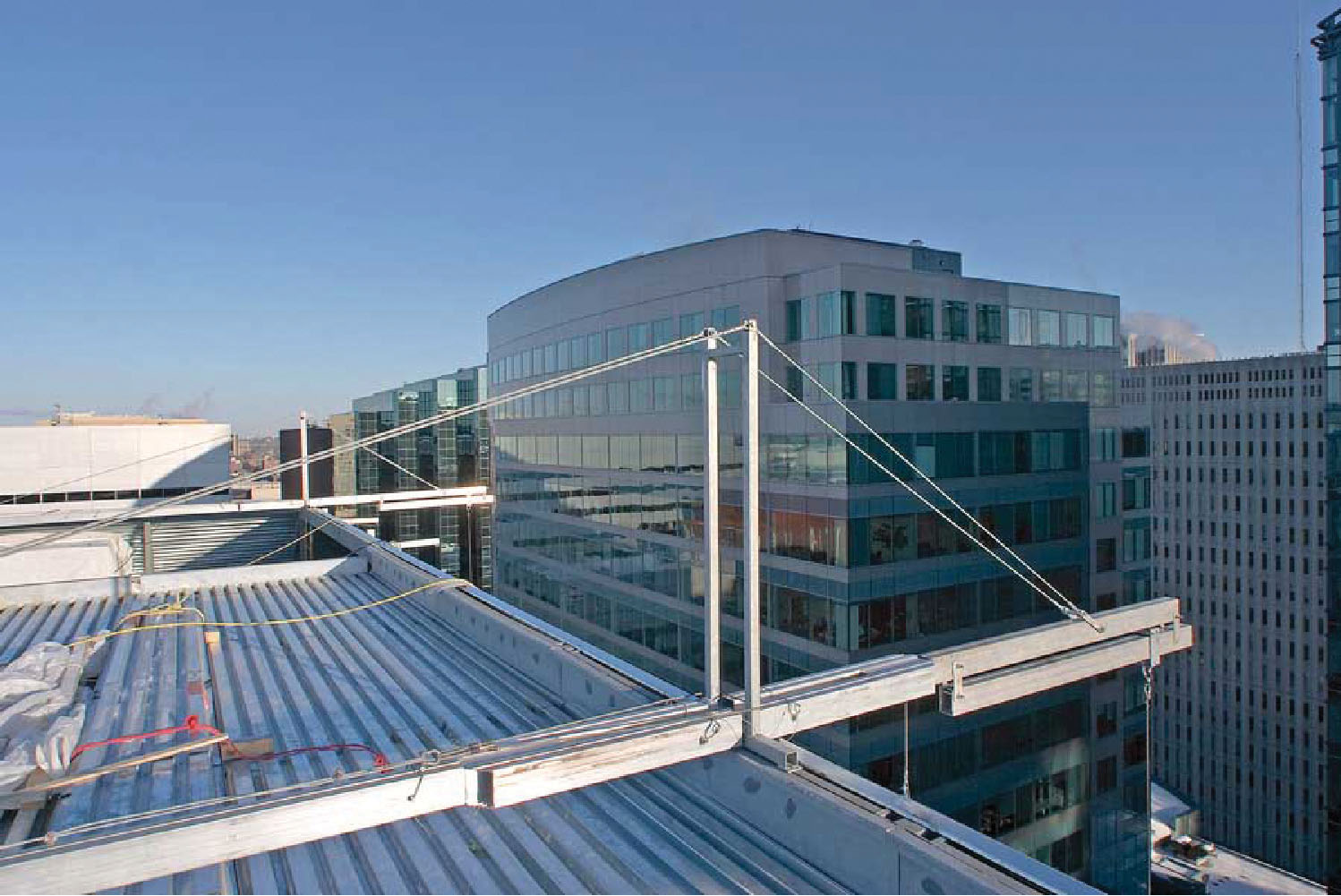

The Cable Truss System from Winsafe can provide up to 18 ft. of outreach with 1000 and 1500 lb. capacities when used in conjunction with 1000/1500 series outrigger beam systems. An optional Sliding Collar (Model WSH5) can be used to allow the suspension point to be adjusted after the beam has been put into position. The optional Rolling Beam Trolley setup (traversing beam) provides a moving suspension point – ideal for working on sloped surfaces
The Cable Truss System is compatible with both 1000 and 1500 Series Outrigger Beams.
Specifications
| Part Number | Description |
|---|---|
| WSOR88 | 8 ft Cable Truss |
| WSOR473 | 10 ft Cable Truss |
| WSOR115 | 12 ft Cable Truss |
| WSOR148 | 14 ft Cable Truss |
| WSOR216 | 16 ft Cable Truss |
| WSOR450 | 18 ft Cable Truss |
Additional Specifications
- Cable Truss includes truss support, cables, and straps.
- For use with 1000 Series beam systems.
Specifications
| Part Number | Description |
|---|---|
| WSOR324 | 9 ft Cable Truss Assembly |
| WSOR420 | 13.5 ft Cable Truss Assembly |
Additional Specifications
- Cable Truss includes truss support, cables, and straps.
- For use with 1500 Series beam systems.
