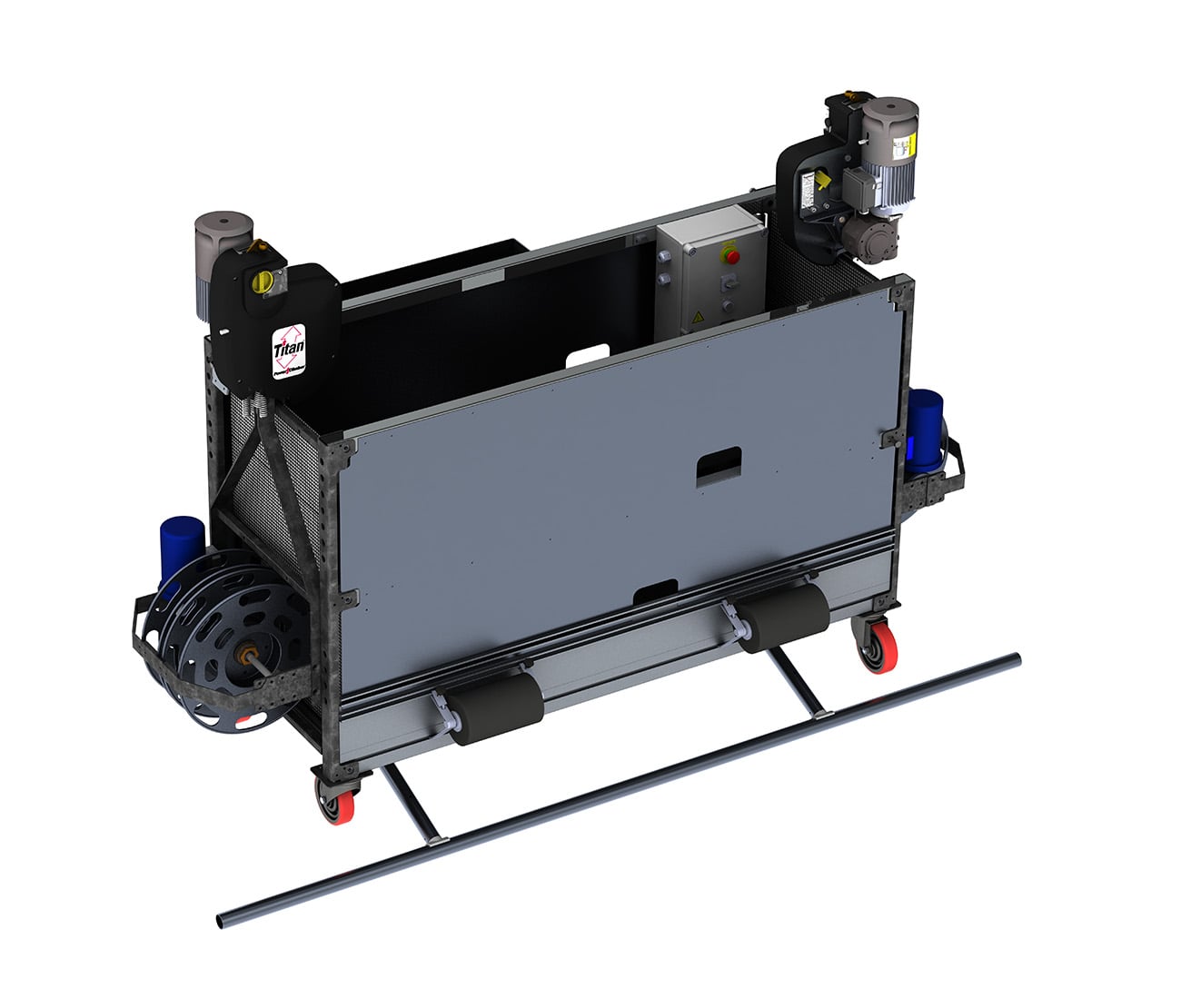

Modulo PI BMU (short example)

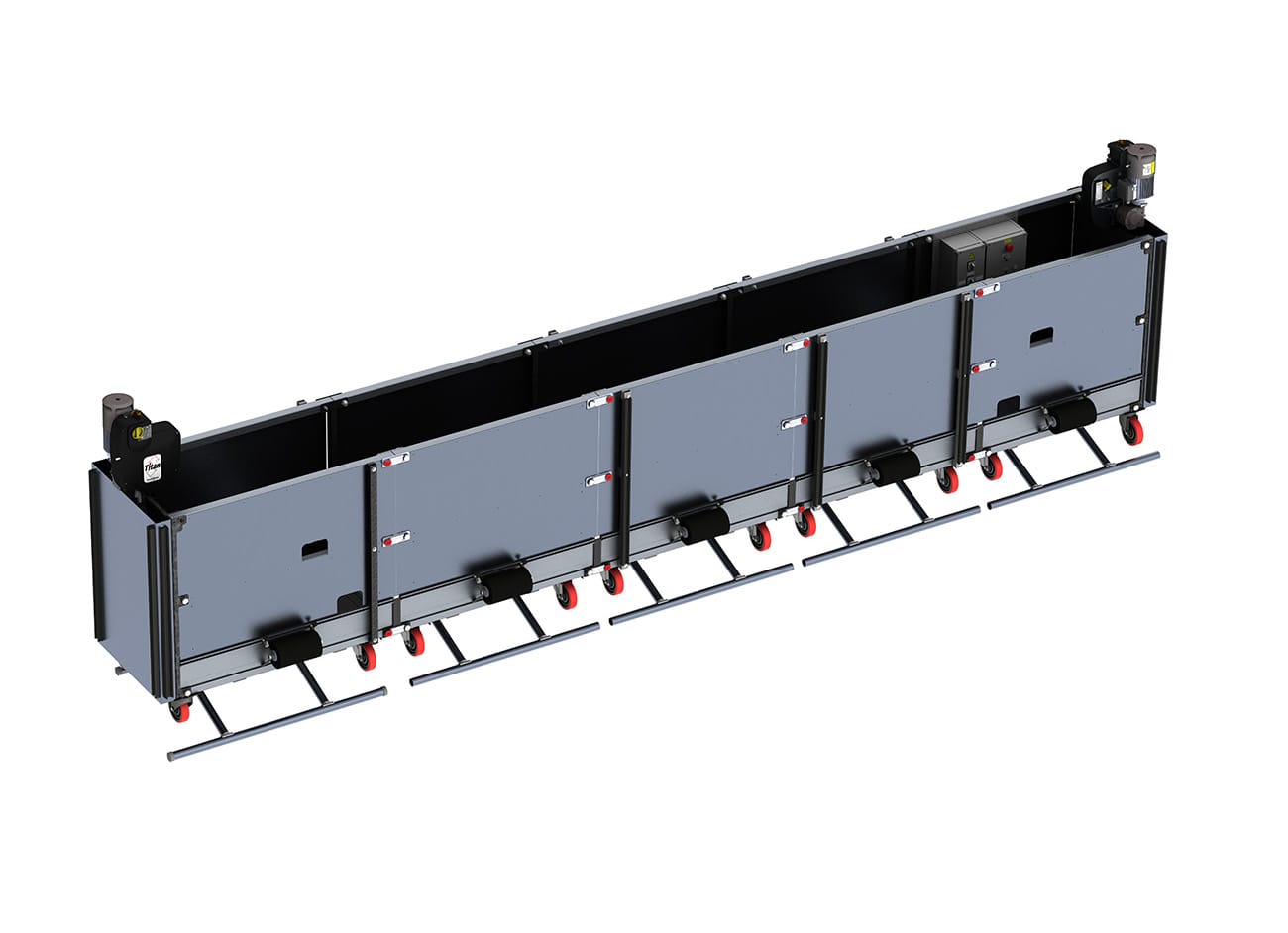

Modulo PI BMU (long example)
Modulo PI
The Modulo PI is Power Climber’s most versatile and configurable BMU platform, with a wide range of standard options to fit your specific height access needs.
Available in standard lengths from 2 to 12 meters and up, the Modulo PI also offers split kit options and supports hoists with a working load limit of up to 650 kg each. Additional options include trolley control, radio control or auto-stopping programmable PLC’s.
Like all of Power Climber’s BMUs, the Modulo PI meets or exceeds the special requirements set by European Standard EN1808 for permanently installed building maintenance units.
The Modulo PI is highly customizable. Please contact Power Climber to discuss your specific configuration needs.
Specifications
Note: The table below represents only a portion of the total options available. Please contact Power Climber to discuss your specific configuration needs.
| Feature | Standard | Optional |
|---|---|---|
| Length | Up to 12 m | Increased length above 12m |
| Capacity | Up to 4 persons | Increased capacity over 4 persons |
| Hoist working load limit | Up to 650 kg for each hoist | |
| Safety devices | Slack rope, overspeed and overload safety systems | End of rope safety device |
| Power supply options | 3 phase 400V +E (+N ) / 50 Hz 1 phase 230V +E / 50 Hz | Other power supplies available on request |
| Other Components | Inside or outside wire winders | |
| Toeboard | ||
| Bumper and end cover protections for wire winders | ||
| Castor wheels and rubber feet | ||
| Standard stirrup | Extended stirrup to increase lateral stability | |
| Bolted end frame mounting | ||
| Bottom top bar on one side | Bottom top bar on two sides | |
| Weather-resistant anodized aluminum cladding | ||
| Radio control | ||
| Single or double monorail trolley control | ||
| Automatic intermediary stop system | ||
| Cable bin | ||
| Water container | ||
| Fire extinguisher | ||
| Interior and exterior RAL powder coated painting |
