Outrigger Beams
Compliant with North American Standards
Power Climber offers both the 1000 Series and 1500 Series outrigger beams from Winsafe. Both series are available in a wide range of lengths and configurations to fit your needs.

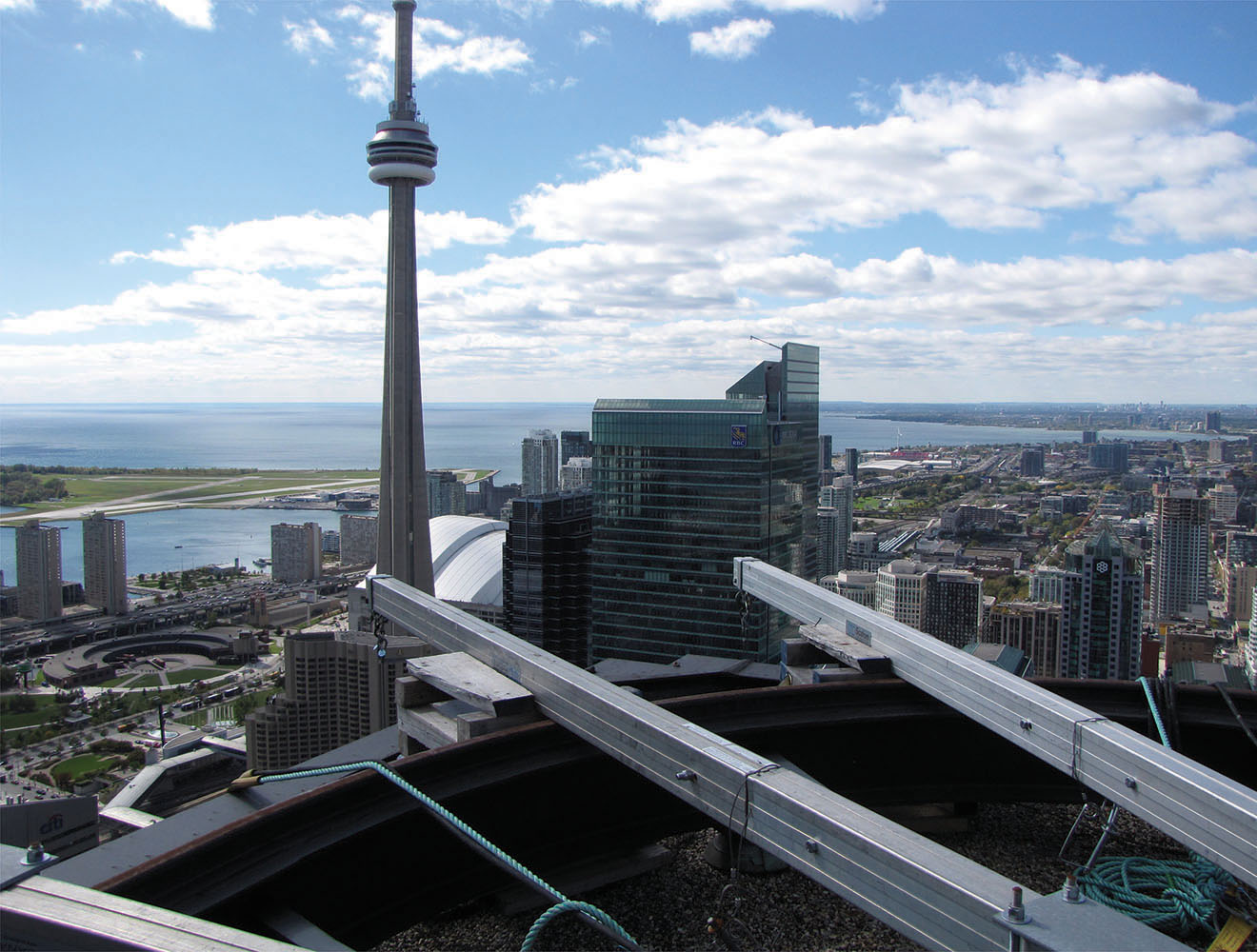

The modular aluminum beams are lightweight and easy to assemble, making them easier to maneuver and handle than other larger, heavier outrigger systems.

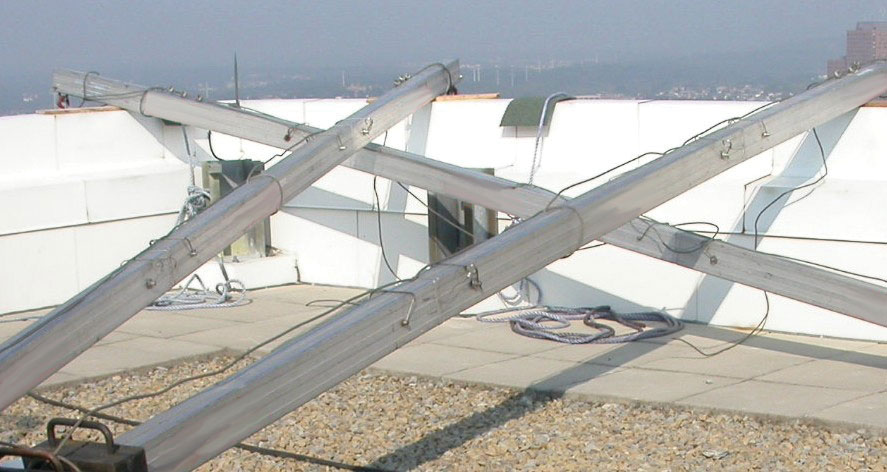

These beams are compatible with the Cable Truss System, allowing for reaches of up to 18 feet.
Specifications
| Part Number | Description |
|---|---|
| WSOR38 | 8 ft Front Section |
| WSOR36 | 10 ft Front Section |
| WSOR37 | 8 ft Mid Section |
| WSOR44 | 8 ft Rear Section for Longhorn Weights |

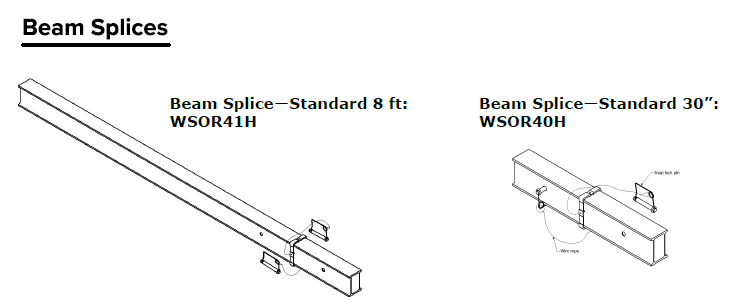

| WSOR40H | Standard 30 in. Beam Splice |
| WSOR41H | 8 ft Beam Splice for Long Reach |
Additional Specifications
Load Capacity: 1,000 lb (453.6 kg)
Key Features
- Reaches up to 5 feet with 1,000 lb capacity in standard configurations, and up to 16 feet with cable truss kits.
- Uses tethered locking pins for 100% tool free assembly making it faster and easier to install while preventing loss of hardware.
- Uses specialized beam extrusion for superior resistance to vertical deflection and twist compared to more typical I beam based systems.
- Rear beams and counterweight holders are compatible with longhorn or saddle style counterweights.
Specifications
| Part Number | Description |
|---|---|
| WSOR317 | 9 ft Front Section |
| WSOR318 | 9 ft Mid Section |
| WSOR319 | 32 in. Beam Splice |
| WSOR500 | 8.5 ft Beam Splice |
| WSOR334 | Counterweight Receiver for Longhorn Weights |
| SP1276 | Outrigger Beam Hold Down Bracket |
Additional Specifications
Load Capacity: 1,500 lb (453.6 kg)
Key Features
- Reaches up to 72 inches with 1,500 lb capacity in standard configurations, and up to 13.5 ft with cable truss kits.
- Allows for the use of a larger platform with higher capacity hoists while still being lightweight and featuring the same tool free assembly as our 1000 Series beams.
- Modular 9 ft aluminum beams are lightweight and easy to assemble in a variety of configurations.
- Splice adapter makes it possible to combine 1000 and 1500 outrigger beams for added flexibility.
- Counterweight holders are compatible with longhorn or saddle style counterweights.
