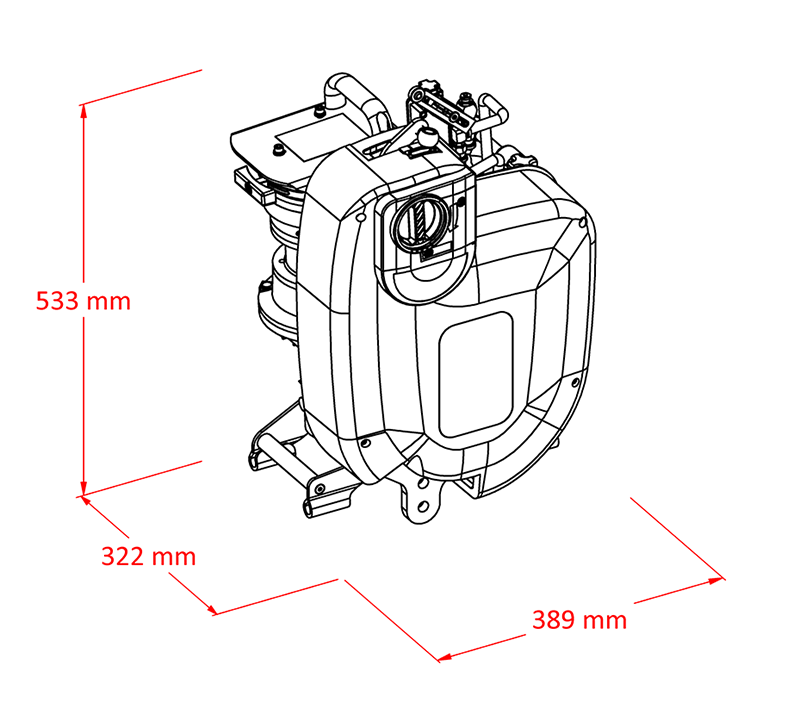

Titan Air Dimensions

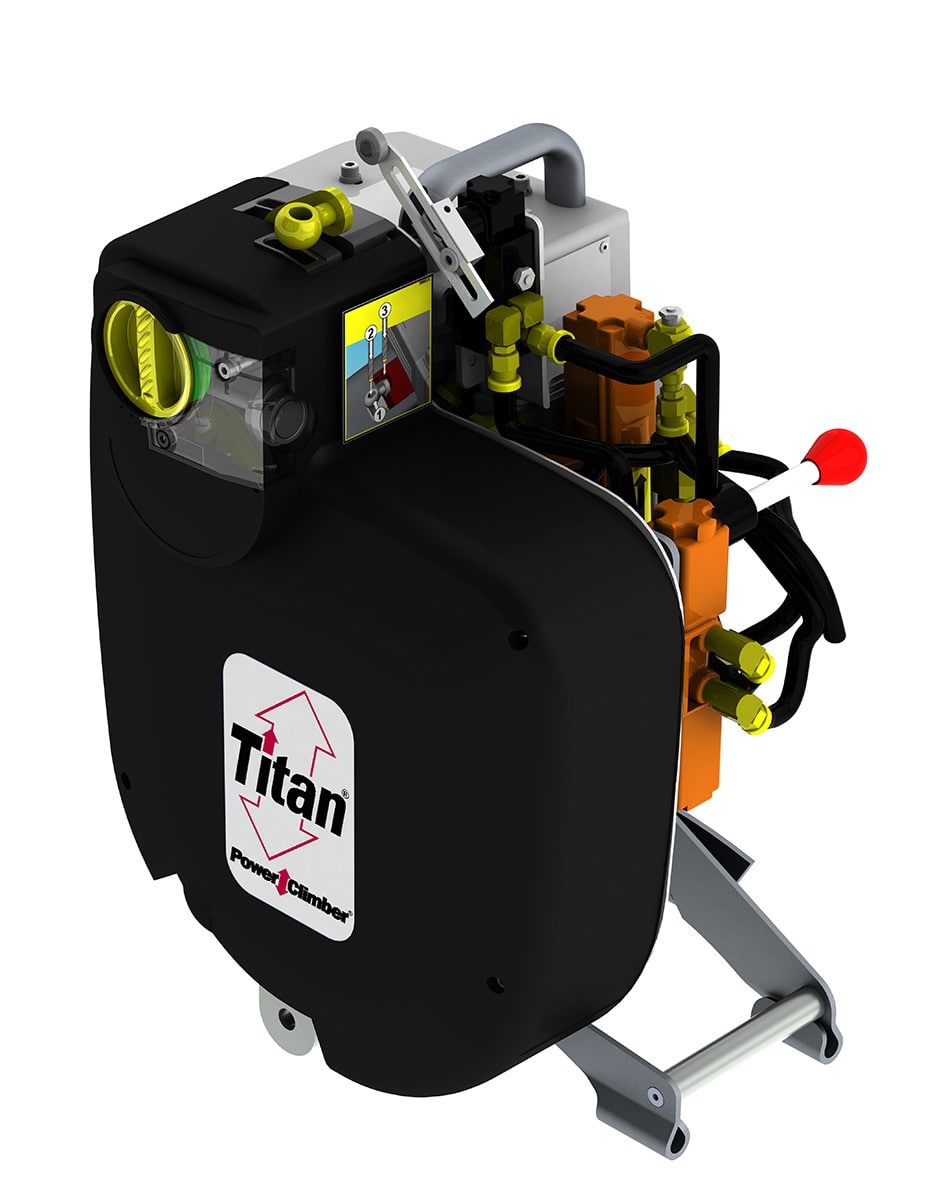

Titan Air Traction Hoists
Safer. Smarter. Stronger.
Power Climber’s Titan Air hoist offers the best of proven technology and innovative features.
Titan Air hoists feature a gross load capacity of up to 500 kg and an operating range of 4.1-7.6 bar (60-110 PSI).
Specifications
| Part Number | Model | Power Supply | Overspeed Brake | Overload | Slack Wire Rope Brake | Top Limit | Weight |
|---|---|---|---|---|---|---|---|
| 8056 | TITAN 500-CE-AIR | Air |  | | | | 45 kg |
| Part Number | Description |
|---|---|
| 90379 | Filter lubrication system for Titan Air hoists |
Additional Specifications
- Gross Load Capacity: 500 kg
- Travel Speed: 8.5 m/min
- Dimensions: 12 x 14 x 20.5 in (305 x 356 x 521 mm)
- Motor: 4 hp
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: ~8 mm
- Maximum Power/Operating Range: 4.1-7.6 bar (60-110 PSI)
