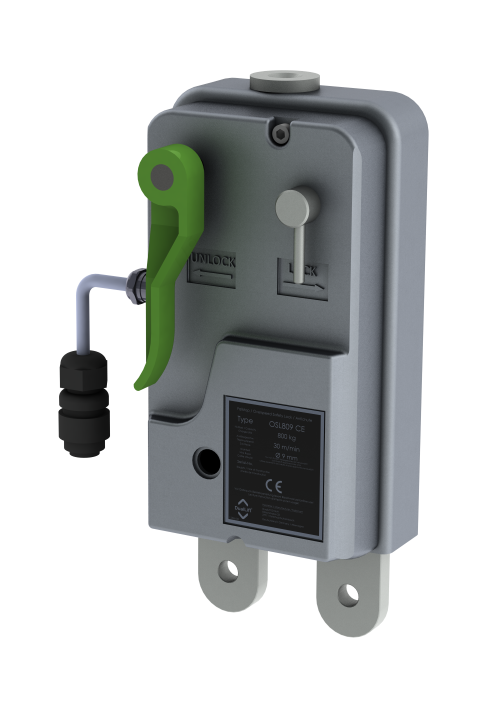

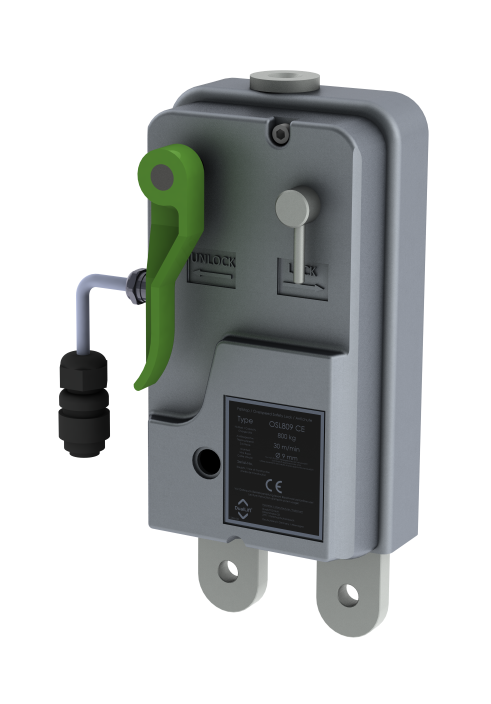

UpSafe OSL809 CE

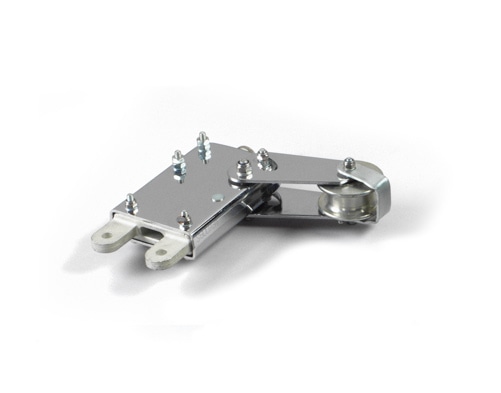

Inclination Safety Lock (ISL)

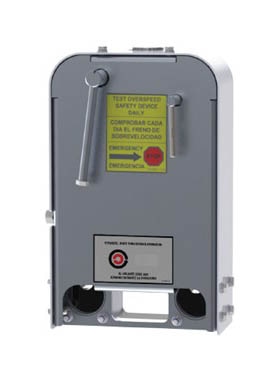

UpSafe OSL2514
UpPro Safety Devices
The UpSafe line of Overspeed Safety Locks (OSL) and Inclination Safety Locks (ISL) are designed to work with UpPro hoists to provide an additional level of safety.
Power Climber offers OSLs and ISLs compatible with all models of UpPro hoists. All OSL and ISL models also offer either 1 or 2 supporting seats for mounting.
Specifications
| Part Number | Model | Description | Capacity | Wire Rope Diam. |
|---|---|---|---|---|
| DB10176 | OSL508 CE | Overspeed Safety Lock | 600 kg | 8,4 mm |
| DB10194 | OSL508 CE-E | Overspeed Safety Lock with electric switch | ||
| D12317A | OSL508-T | Overspeed Safety Lock – OSL – T | ||
| D12318 | OSL-T Test Kit | Test Equipment for OSL 508-T | ||
| D11350 | OSL508 CCV | Overspeed Safety Lock (Cold Climate Version) | ||
| D10177 | OSL809 CE | Overspeed Safety Lock | 800 kg | 9 mm |
| DB10357 | OSL809 CE-E | Overspeed Safety Lock with electric switch | ||
| DB10359 | OSL1010 CE | Overspeed Safety Lock | 1.000 kg | 10,2 mm |
| DB10358 | OSL1010 CE-E | Overspeed Safety Lock with electric switch | ||
| D12800 | OSL 2514 CE-E | Overspeed Safety Lock with electric switch | 2.500 kg | 14 mm |
Additional Specifications
- Activation speed: 30 m/min
- Weight: 7 kg except OSL 2514 CE-E (D12800) at 20 kg
Features & Benefits
- For hoists with a control box, the addition of an electrical switch to the UpSafe OSL allows the hoist to be electrically shut off automatically if an activation occurs.
- The UpSafe OSL-T is the same robust design as the standard OSL, however it allows easier daily check.
- Cold climate version can be operated in ambient temperatures down to -35C.
Specifications
| Part Number | Model | Description | Capacity | Wire Rope Diam. |
|---|---|---|---|---|
| D10169 | ISL508 CE | Inclination Safety Lock | 600 kg | 8,4 mm |
| D10171 | ISL1010 CE | Inclination Safety Lock | 1.000 kg | 10,2 mm |
Additional Specifications
- Activation Angle: 14° inclination
- Weight: 7 kg
